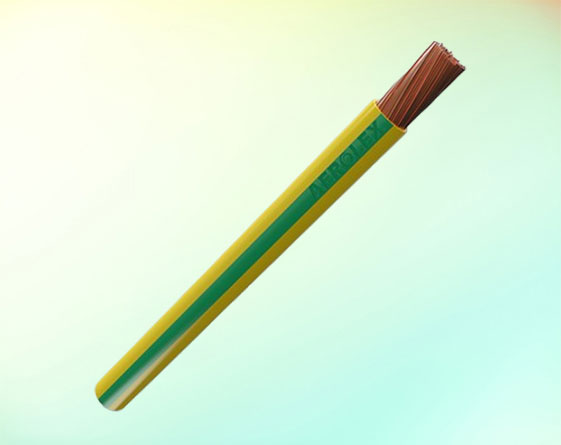

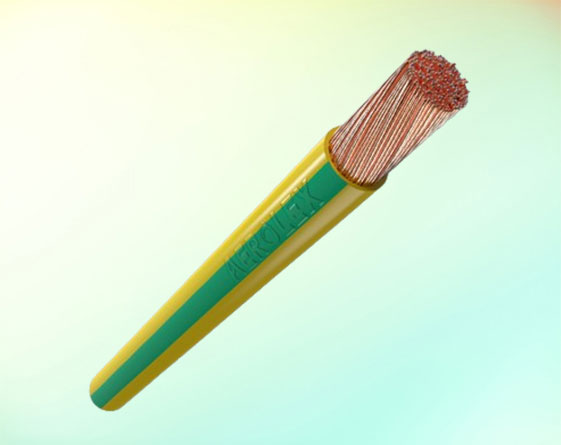

Earthing Cables & Conductors

Nominal Cross Section Area SQ. MM	Nos. / Size of Wire NOS./ MM	Conductor Resistance at 20°C (Max) OHM/KM
6	7/1.04	3.08
10	7/1.35	1.83
16	7/1.70	1.15
25	7/2.14	0.727
35	7/2.52	0.524
50	19/1.78	0.387
70	19/2.14	0.268
95	19/2.52	0.193
120	37/2.03	0.153
150	37/2.25	0.124
185	37/2.52	0.099
240	61/2.25	0.0754
300	61/2.52	0.061
400	61/2.85	0.047

Nominal Cross Section Area SQ. MM	Nos. / Size of Wire NOS./ MM	Conductor Resistance at 20°C (Max) OHM/KM
6	84/0.3	3.3
10	140/0.3	1.91
16	226/0.3	1.21
25	354/0.3	0.78
35	495/0.3	0.554
50	703/0.3	0.386
70	360/0.5	0.272
95	475/0.5	0.206
120	608/0.5	0.161
150	756/0.5	0.129
185	925/0.5	0.106
240	1221/0.5	0.0801
