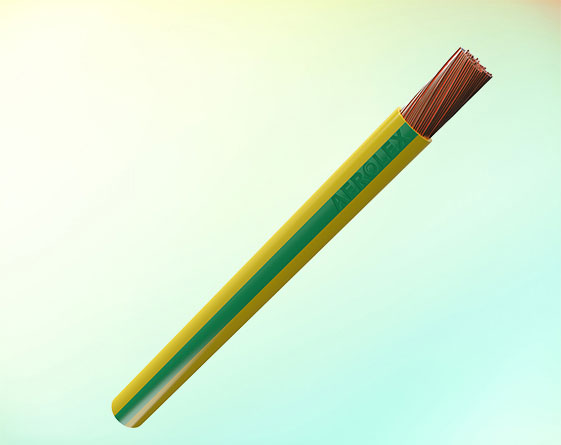

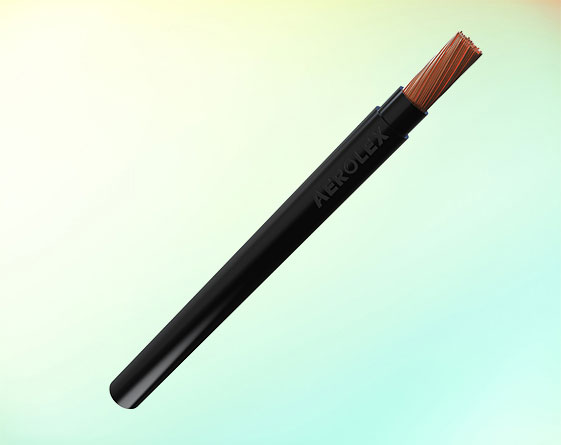

Wind Energy Cables

Reliable Cabling for Harsh Wind Environments

Wind turbines are installed in some of the world's most demanding environments — from hilltops and deserts to seashores and offshore platforms. These locations expose systems to intense UV, mechanical stress, moisture, and extreme temperatures.

AEROLEX Wind Energy Cables are engineered to thrive under these harsh conditions, delivering durability, flexibility, and long-term performance. Installed in nacelles, towers, or turbine bases, these cables ensure seamless power transmission and signal integrity in both onshore and offshore wind energy installations.

Key Features

High Flexibility & Torsion Resistance: Specially designed for dynamic bending and twisting in moving parts such as nacelles and pitch control loops.
UV & Weather Resistant: Built to withstand prolonged exposure to harsh environmental conditions including sunlight, rain, and salt spray.
Oil & Chemical Resistance: Excellent durability against mineral oils, synthetic lubricants, hydraulic fluids, cleaning agents, and coolants.
Temperature Resistant: Stable performance from -40°C to +105°C, with short-circuit resistance up to 250°C.
Environment Friendly: Made with halogen-free, low smoke, and recyclable materials for safer and greener installations.

Applications

Nacelle-to-Rotor Cable Connections
Tower Internal Wiring
Pitch and Yaw Control Systems
Generator and Transformer Interconnections
Onshore and Offshore Wind Farms

Technical Specifications

Rated Voltage: 0.6/1 kV
Max. Operating Voltage (AC): 0.7/1.2 kV
Max. Operating Voltage (DC): 0.9/1.8 kV
Test Voltage: 3 kV
Max. Conductor Temperature: 90°C
Short-Circuit Temp: 250°C
Working Temp Range: -40°C to +90°C

Construction

Standards: DIN VDE 0250, DIN VDE 0282, UL 758 (AWM Style 4537)
Conductor: Flexible bare copper wires (Class 5 as per IEC 60228)
Insulation: EPR-based thermoplastic rubber compound
Core Identification: According to HD 308
Sheath: UV & oil-resistant thermoplastic rubber compound

Sustainable, Reliable & Future-Ready

Backed by AEROLEX's engineering excellence, our wind energy cables are a trusted choice for OEMs, EPC contractors, and renewable energy developers worldwide.

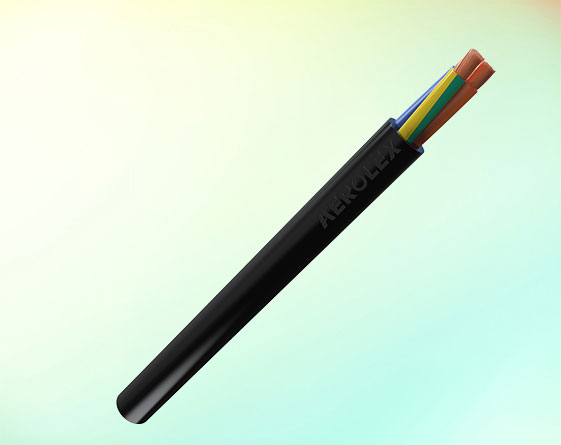

3 Core Round

No of Core x mm²	Mean Insulation Thickness MM	Outside Diameter Min. MM	Outside Diameter Max. MM	Max Cond. Resistance OHM/KM
3 G 1.5	0.8	9.6	12.5	12.1
3 G 2.5	0.9	11.5	14.5	7.41
3 G 4	1	13	16	4.95
3 G 6	1	14.5	20	3.3
3 G 10	1.2	20	25.5	19.1
3 G 16	1.2	22.5	29.5	1.21
3 G 25	1.4	26.5	34	0.78
3 G 35	1.4	29.5	38	0.554
3 G 50	1.6	34.5	44	0.386
3 G 70	1.6	39	49.5	0.272
3 G 95	1.8	44	54	0.206
3 G 120	1.8	47.5	50	0.161
3 G 150	2	52.5	66.5	0.129
3 G 185	2.2	58	71.5	0.106
3 G 240	2.4	65.5	81	0.0801
3 G 300	2.6	72.5	89.5	0.0641

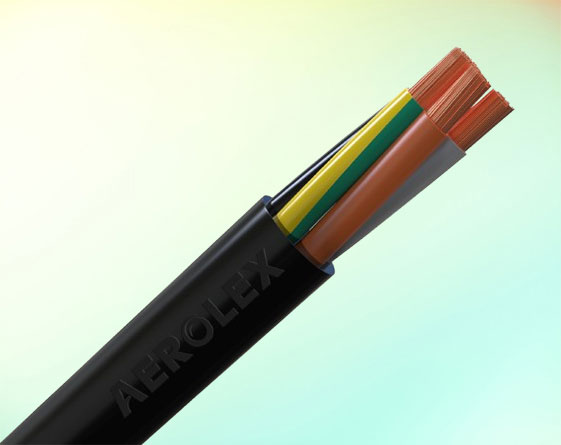

4 Core Round

No of Core x mm²	Mean Insulation Thickness MM	Outside Diameter Min. MM	Outside Diameter Max. MM	Max Cond. Resistance OHM/KM
4 G 1.5	0.8	10.5	13.5	12.1
4 G 2.5	0.9	12.5	15.5	7.41
4 G 4	1	14.5	18	4.95
4 G 6	1	16.5	22	3.3
4 G 10	1.2	21.5	28	19.1
4 G 16	1.2	24.5	32	1.21
4 G 25	1.4	29.5	37.5	0.78
4 G 35	1.4	33	42	0.554
4 G 50	1.6	38	48.5	0.386
4 G 70	1.6	43	54.5	0.272
4 G 95	1.8	49	60.5	0.206
4 G 120	1.8	53	65.5	0.161
4 G 150	2	58.5	74	0.129
4 G 185	2.2	64.5	79.5	0.106
4 G 240	2.4	73	90	0.0801

Note: Insulation thickness, Sheath thickness and overall dimensions are nominal values. The number of wires is approximate and strand diameter is nominal; they shall be such as to satisfy the requirements of conductor resistance as per IS 8130/1984, BS-6360, IEC-228 & VDE-0295.
