PVC Insulated Battery Cables

Home  /  Products  /  Battery Cables  /  PVC Insulated Battery Cables

PVC Insulated Battery Cables

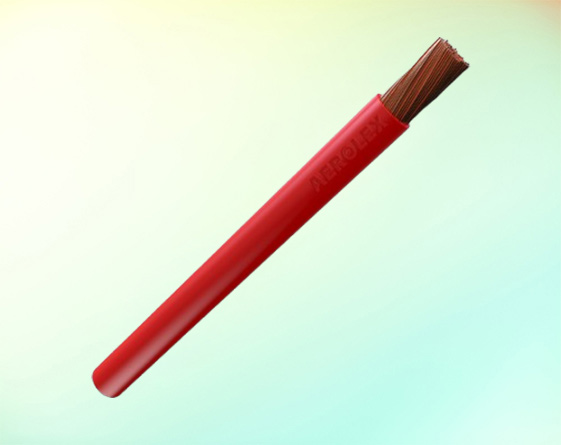

PVC Battery Cable 1

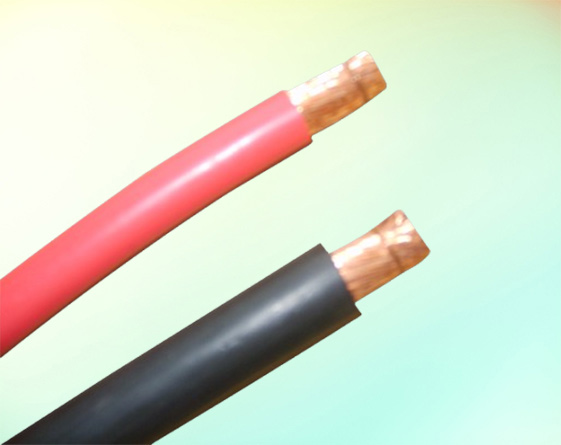

PVC Battery Cable 2
Make An Inquiry

Make An Inquiry

Fill the form below and we'll get back to you shortly.

+91

Conductor

  • High purity electrolytic grade bright annealed flexible bunched bare copper conductor confirming to International Standards such as IS-8130, BS-6360, IEC 228 & VDE-0295.

Insulation

  • Specially developed dielectric grade PVC Compound which is resistance to oil, water, petrol.

PVC Insulated Battery Cable Technical Data

Cross Section Area (Nom.)
SQ.MM		 Insulation Thickness (Nom.)
MM		 Overall Diameter (Approx.)
MM		 Conductor Resistance at 20°C (Max.)
OHM/KM		 Current Carrying Capacity
AMPS
1617.81.2157
251.29.70.7871
351.2110.55491
501.413.20.386120
701.415.30.272165
951.617.90.206200
1201.619.40.161225
1501.821.90.129250
185224.50.106300
2402.2280.0801425

Note: Insulation thickness and overall dimensions are nominal values. The number of wires is approximate and strand diameter is nominal; they shall be such as to satisfy the requirements of conductor resistance as per IS 8130/1984, BS-6360, IEC-228 & VDE-0295.
